Gooseneck Low-bed Trailer
Type:5-Line 10-Axle Hydraulic Gooseneck Low-bed Trailer
MOQ:1pcs
Sample:available
Warranty:2years
Payment:LC,TT,West Union,Paypal
Shipping:Ro-Ro shipping / container shipping / bulk carrier services / customized intermodal solutions
Features

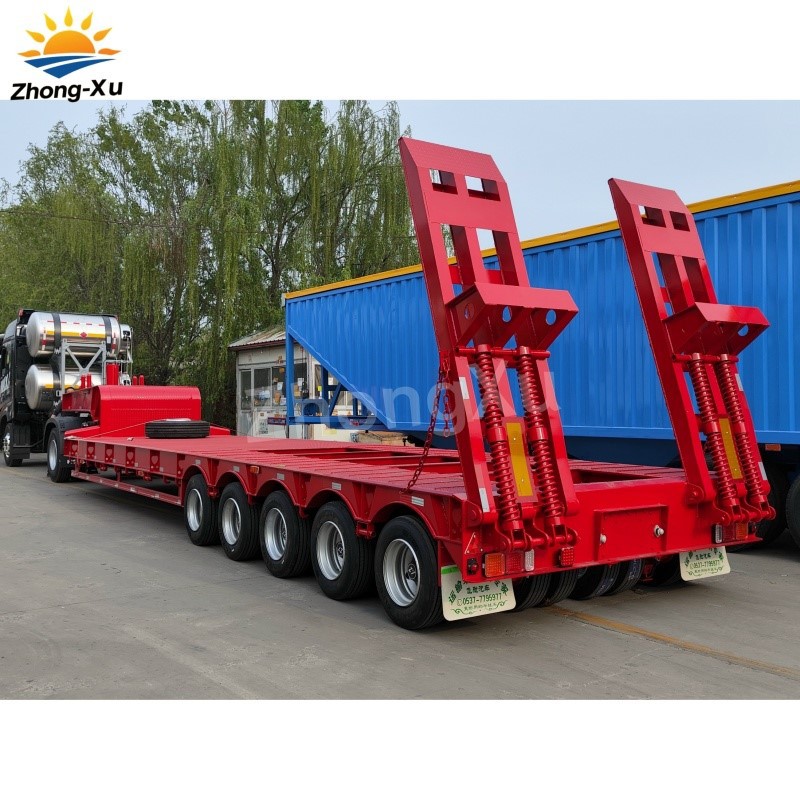

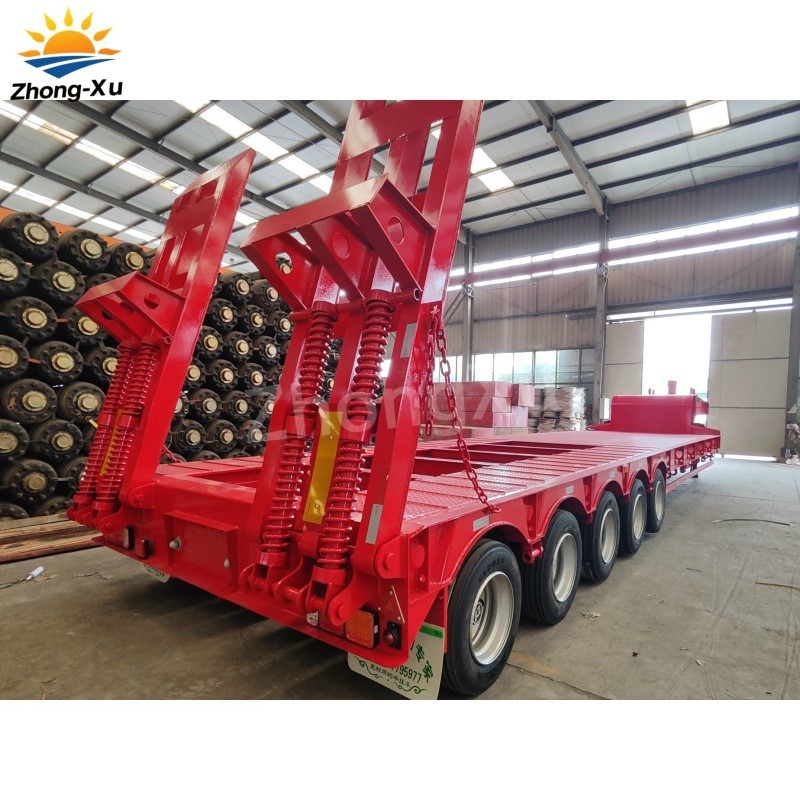

This heavy-duty special transport trailer features a 5-line, 10-axle configuration with a rated load capacity of 150–180 tons. The 10-axle, 40-wheel design effectively distributes weight to comply with road load limits.
With its loading platform standing only 0.8 meters above the ground, combined with hydraulic height-adjustment technology, the trailer reduces the loading height of oversized cargo, mitigating height-restriction risks and maintaining a stable center of gravity.
The gooseneck low-bed trailer is designed specifically for heavy-duty tractors and is custom-tailored for the transport of large, indivisible cargo, such as tunnel boring machines and wind power generation equipment. It provides a reliable solution for the specialized transport requirements of the infrastructure and chemical industries.
Products Description
| Parameter | Specification |
|---|---|
| Product Name | Gooseneck Low-Bed Trailer |
| Axle | 5-Line 10-Axle (FUWA/BPW brand optional) |
| Tire | 12R22.5 / 12.00R20 / 11R22.5 (10 units) |
| Suspension | Mechanical suspension / Air suspension |
| Kingpin | 2" (50mm) or 3.5" (90mm) JOST |
| Brake System | WABCO RE 6 relay valve; T30/30+T30 spring brake chamber (TAIYUE brand) |
| Traction Pin | JOST 2" or 3.5" traction pin |
| Landing Gear | Standard 28Ton |
| Material | High-strength steel |
| Gooseneck | Hydraulic lifting gooseneck (height adjustable) |
| Loading Ramp | Spring-loaded hydraulic ladder (integrated at rear) |
| Color | Customizable as per customer requirements |
| Application | Heavy machinery, construction equipment, oversized cargo transport |
Service Guarantee
Customize a solution exclusive to you according to your needs
why choose our products
1.The core advantage lies in the high-strength steel-aluminum composite construction. This material choice provides the structural integrity of steel while significantly reducing the trailer's empty weight. This translates directly into higher legal payload capacity and improved fuel efficiency for the hauling truck.
2.Enhanced Operational Efficiency: The hydraulic lowering system drastically cuts loading/unloading time and labor costs. What traditionally requires heavy equipment can now be done quickly and safely with the push of a button.
3.Superior Durability & Longevity: The use of premium materials and rigorous manufacturing standards ensures exceptional resistance to bending, twisting, and fatigue. This results in a longer service life and lower long-term maintenance costs, providing a higher return on investment.
4.Customization and Compliance: Zhongxu offers a range of customizable options (length, capacity, suspension) to meet specific regional legal requirements and unique customer needs, ensuring optimal performance in any market.
Company Brand

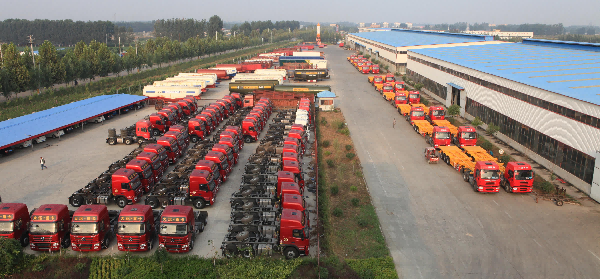

Zhongxu Automobile
1. Purchase high-quality and high-strength steel (such as Q345B, Q690, etc.) and well-known brand components (axles, suspensions, ABS systems, etc.)
2. Introduce automated equipment such as welding robots and laser cutting machines, with the automation rate of key processes reaching over 80%
3. Respond quickly to customers' personalized demands and provide a one-stop solution from design to production
4. Optimize production cycle through the MES production execution system and shorten the delivery period
Zhongxu Company, with its meticulous production process, advanced manufacturing technology and strict quality control, has developed semi-trailer products that meet international market standards, earning the trust of customers worldwide.
Products Certification
Gooseneck low-bed trailers hold mandatory domestic certifications, including CCC and MIIT Vehicle Announcement certifications, and obtain targeted compulsory certifications such as E/e-Mark, DOT, and EAC for major export markets using certified key components, while maintaining post-certification product consistency and compliance.

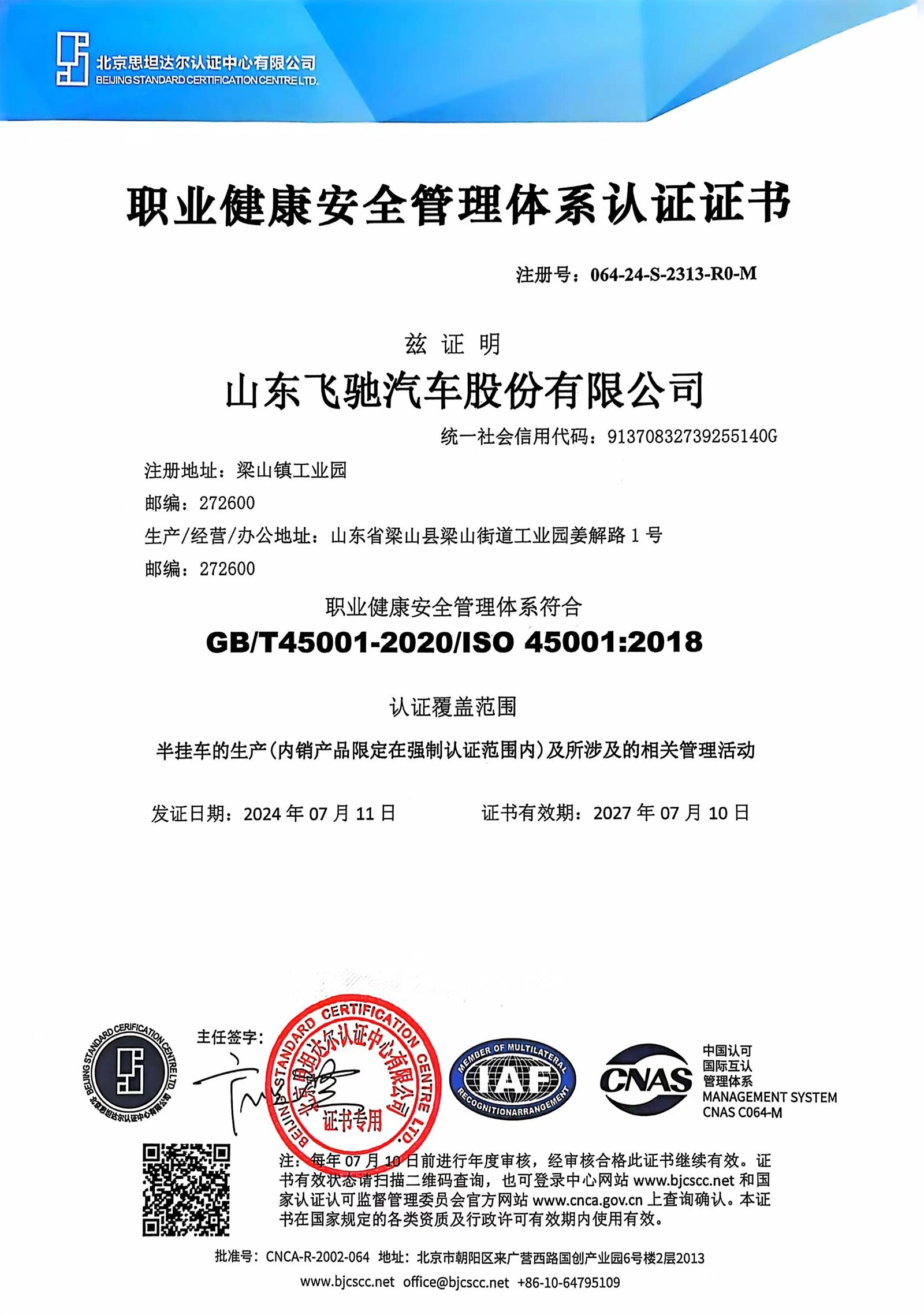

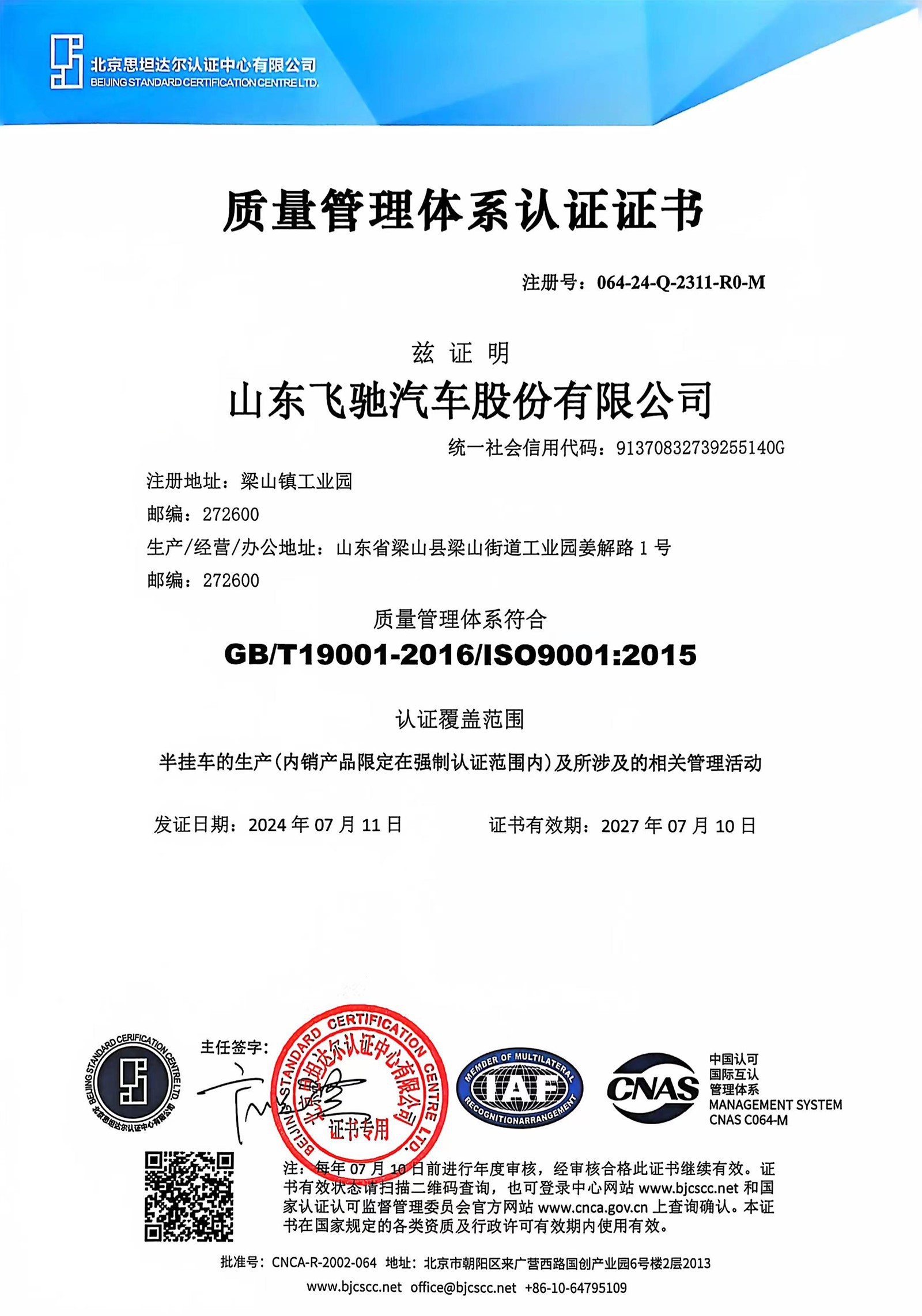

Our Certificate
IATF 16949:2016
ISO 9001:2015
Environmental Management System Certificate
FAQ
Q1: What are the production lead times for standard and customized models respectively?
A1: The production lead time for standard models (e.g., 3-axle/6-load low-bed semi-trailers) is 7-10 days; for customized models (e.g., 5-axle/10-load heavy cargo transporters), it takes 15-25 days, including the time for design confirmation and spare parts procurement.
Q2: What payment methods are supported?
A2: For domestic orders, we support deposit + balance payment (30% deposit, full balance before shipment) and corporate transfer; for overseas orders, T/T telegraphic transfer (30% deposit, full balance after production completion before shipment) and L/C letter of credit are available.
Q3: What are the differences in transportation methods for domestic and overseas shipments?
A3: Domestic orders are mainly delivered by flatbed truck directly to the door; overseas orders are transported by container sea freight (40HQ/45HQ containers, split loading available) or roll-on/roll-off ships, and breakbulk shipping can be arranged for some remote areas.
Q4: How to track the logistics progress after shipment?
A4: For domestic orders, we provide the contact information and real-time positioning of the flatbed truck driver; for overseas orders, we issue the ocean bill of lading and container tracking number (queryable via the shipping company's official website), and our foreign trade specialists will synchronously update the arrival and customs clearance progress.
Q5: Is service still available after the warranty period expires?
A5: Yes, we provide lifetime paid services, including the supply of original spare parts, paid maintenance and technical consultation. Overseas customers can complete maintenance through local authorized service stations or remote video guidance.
